12V 30A T Type H90 Power Relay PCB Type - SHENLE
- Brand: SHENLE
- Product Code: RELAY-12V-30A-T-TYPE-H90-PCB-TYPE-SHENLE
- Reward Points: 5
- Availability: Out Of Stock
-
₹55.00
- Price in reward points: 550
-
- 5 or more ₹54.00
- 10 or more ₹52.00
- 20 or more ₹50.00
- 50 or more ₹48.00
- 100 or more ₹45.00

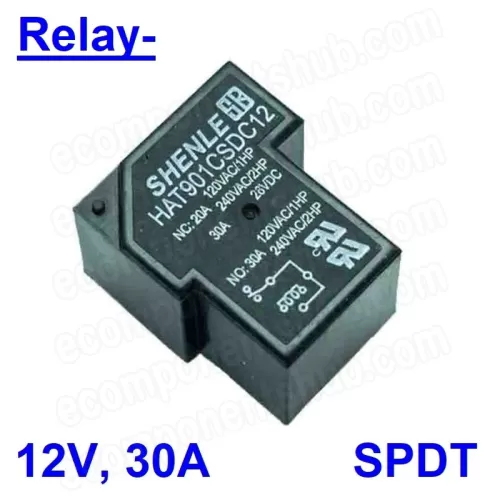

It is a 12V 30A T Type H90 Power Relay PCB Type - SHENLE.
This Power relay is used for switching high-current AC appliances such as Air conditioners, Electric Heaters, Geysers, etc. Which need to be controlled by a microcontroller or sensor output. It operates on a 12V DC and, the max load current capacity is 30A. It is an SPDT relay. It has 2 pins for 12v coil, and 3 pins for NO, NC, and COM. It has two COM terminals, and both of them are internally connected to each other. So total are 6 Pins in this relay which are shown in the image. The relay we have is good in quality.
Specifications:-
| ▶ Operating Voltage | : | 12 Volt |
| ▶ Coil Current | : | 73 mA |
| ▶ Coil Resistance | : | 165 ohm ± 5% |
| ▶ Maximum Load Current (Normally Open) | : | 30A at 120VAC & 240VDC |
| ▶ Maximum Load Current (Normally Closed) | : | 20A at 120VAC & 240VDC, 30A at 28VDC |
| ▶ Pole Type | : | SPDT (Single Pole Double Through) |
| ▶ Total No. of Pins | : | 6 |
| ▶ Weight | : | 25.2 gm ± 5% |
| ▶ Dimension (LxBxH) | : | 31x27x19 mm ± 5% |
| ▶ Color | : | Black |
| ▶ Model | : | HAT901CSDC12 |
| ▶ Brand | : | SHENLE |
Applications:-
- High-current Loads such as Air conditioners, Electric heaters, Geysers, etc.
- Power Boards.
- Automation.
- Arduino Projects.
- Inverters.
Package Includes:-
1pc of 12V 30A T Type H90 Power Relay PCB Type - SHENLE
Note:-
* You will receive the same product as shown in the image, sometimes it may be slightly different.
* If a brand is mentioned then you will receive the same brand's product.
